SYNOPTRA at a glance

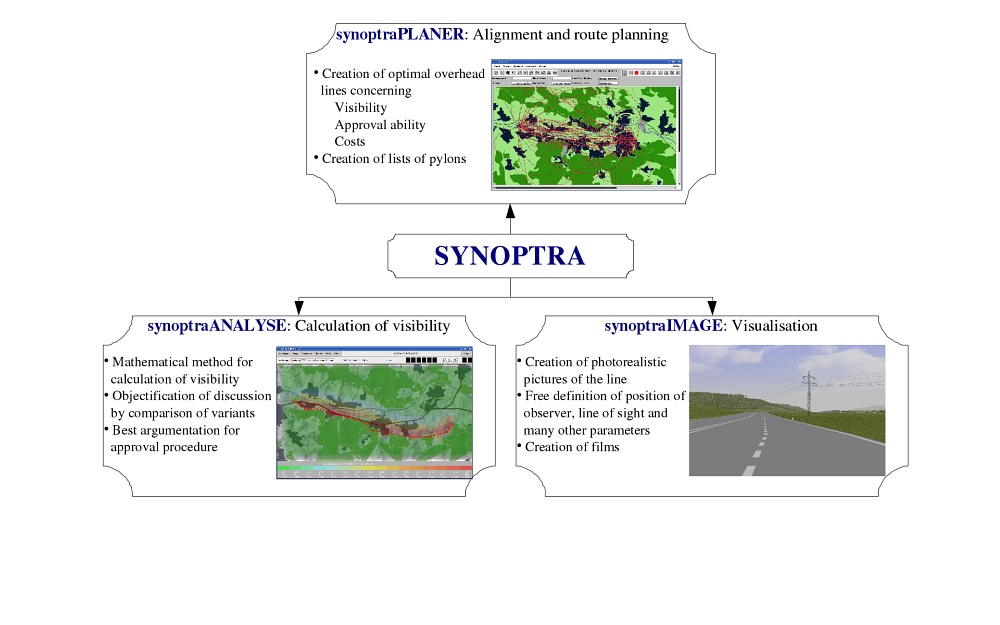

The software suite SYNOPTRA consists of the following components:
synoptraPLANER (Planning and Tracing)- Creation of optimal overhead lines with respect to the criteria "visibility", "approval ability" and "costs"
- Creation of lists of pylons
- synoptraANALYSE (Analysis and calculation of visibility)
- Mathematical method to calculate optical impact of an overhead line
- Objectification of the dispute about preferred line by comparing values of visibility
- Best argumentation for approval procedure
- synoptraIMAGE (Visualisation)
- Creation of photorealistic pictures of the planned overhead line
- Free definition of observer position and line of sight - and many other parameters
- Creation of films
